How to add HL7 patient room/bed to a badge

How to add HL7 patient room/bed to a badge

How to add HL7 patient room/bed to a badge

1) Map the Room/Bed to passagepoint fields

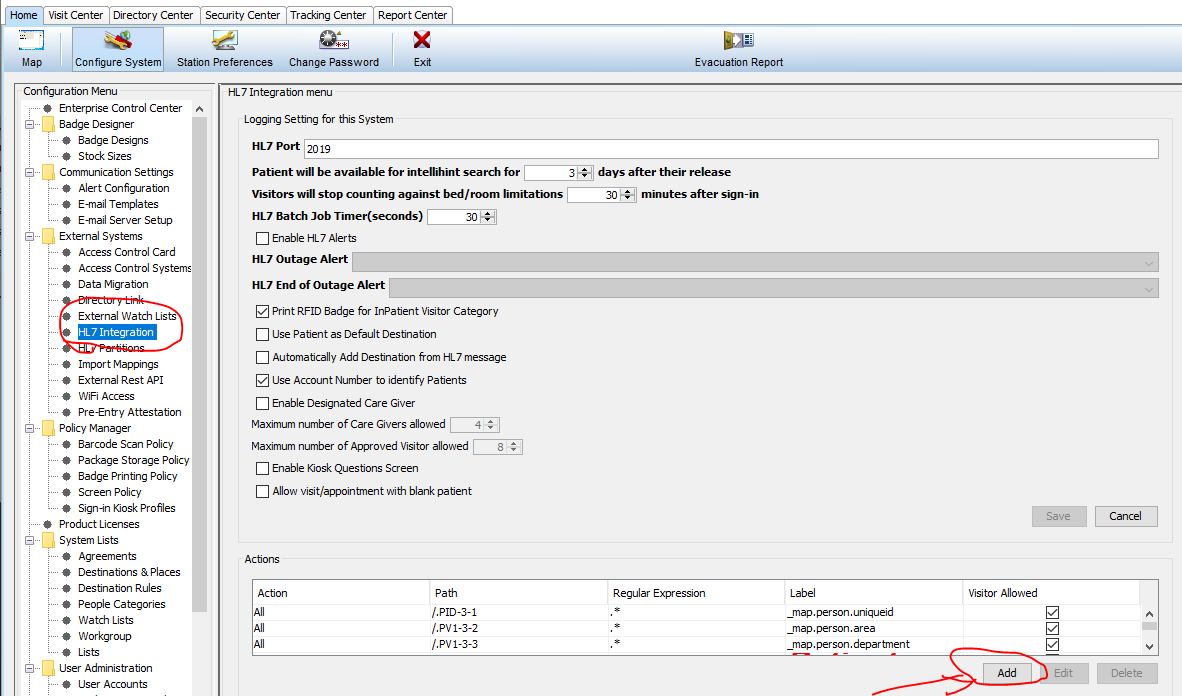

Navigate to Home > configure > HL7 Integration and hit "New"

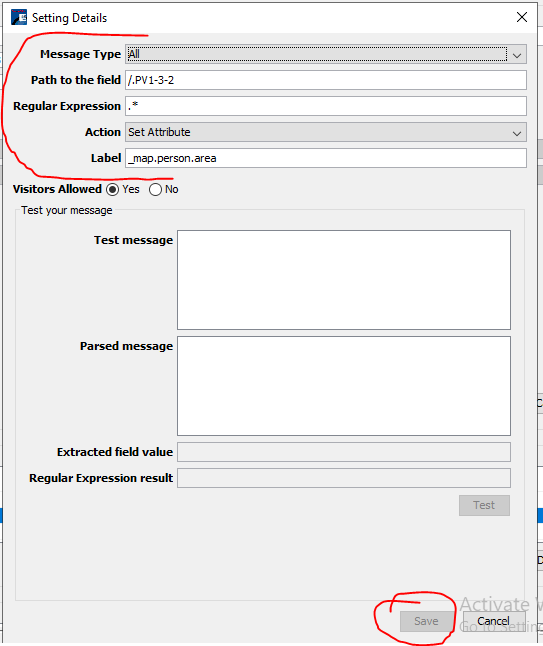

for the Room => Using the HL7 integration screen, add a new Action rule exactly as follows:

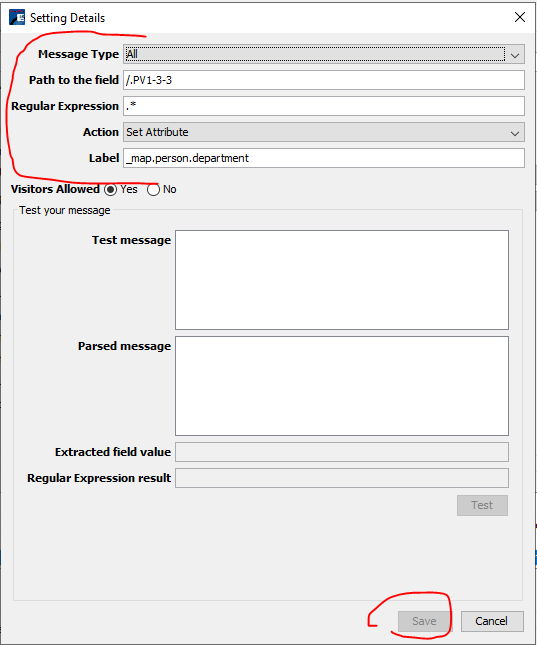

for the Bed => Using the HL7 integration screen, add a new Action rule exactly as follows:




2) Add the area field (room), and department field (bed) to the badge

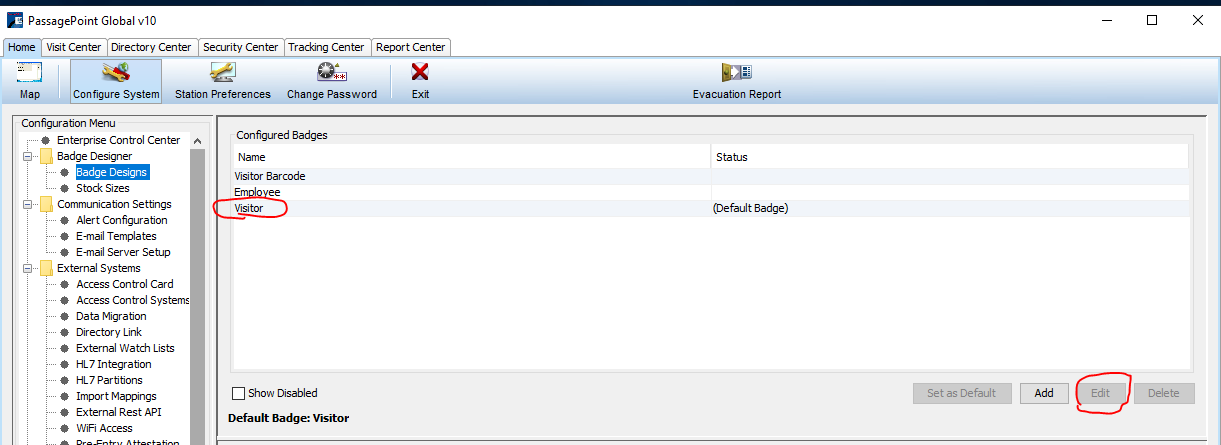

select the badge and hit modify

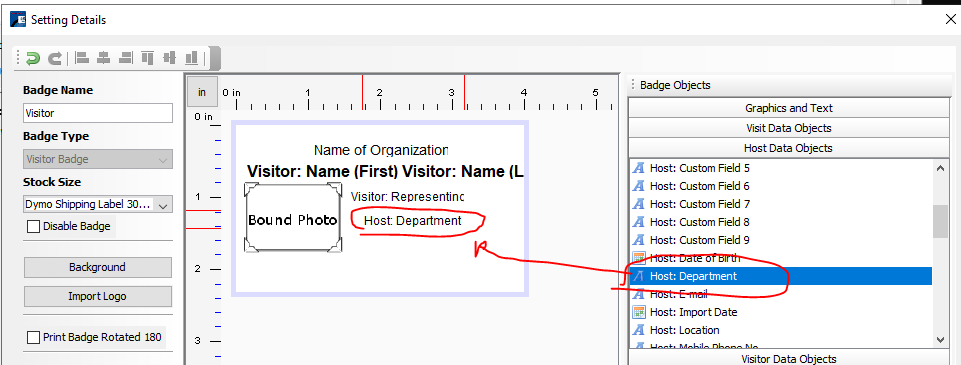

Then, find the department and drag and drop it on the badge. Do the same for the area.
