HL7 - How to add the MRN number to the PassagePoint Rapid Registration Form

HL7 - How to add the MRN number to the PassagePoint Rapid Registration Form

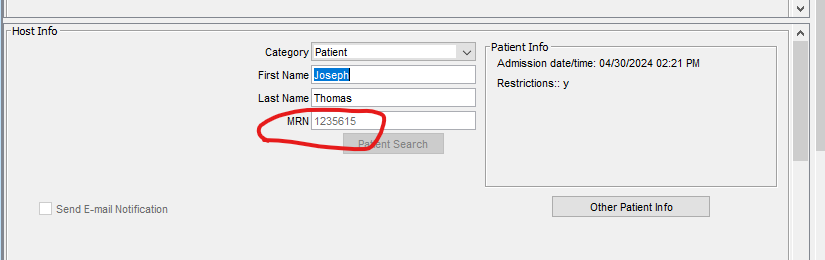

The goal is to display the MRN on the rapid registration once a patient is looked up, like this:





1) Add the MRN field to the rapid registration form

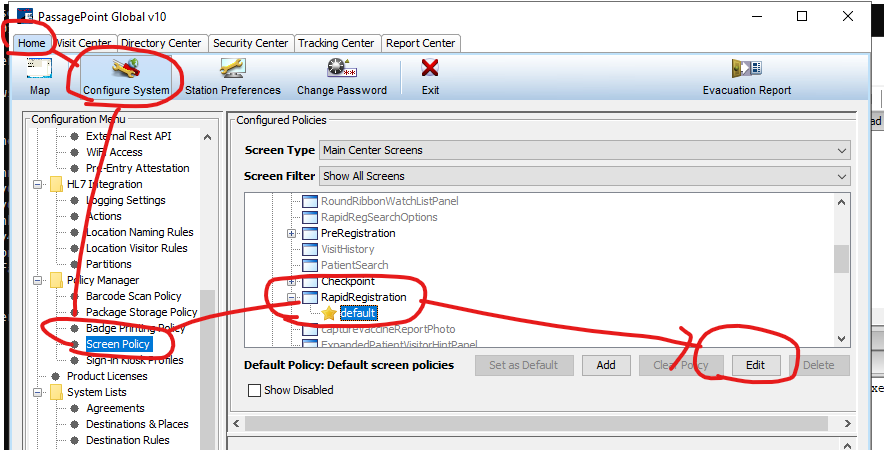

      - Using passagepoint's powerful screen policy, edit the Rapid Registration form

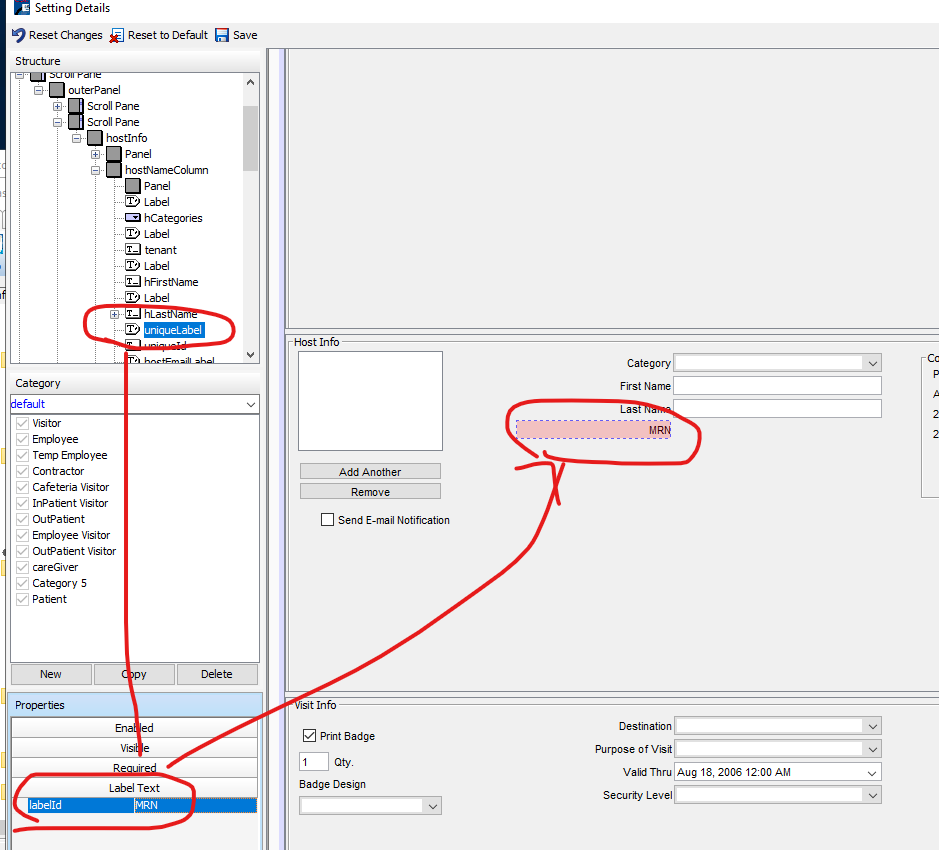

- Turn UniqueLabel's visible property to true.




- Change Lable Text to "MRN" then hit your enter key. Label will now read "MRN"

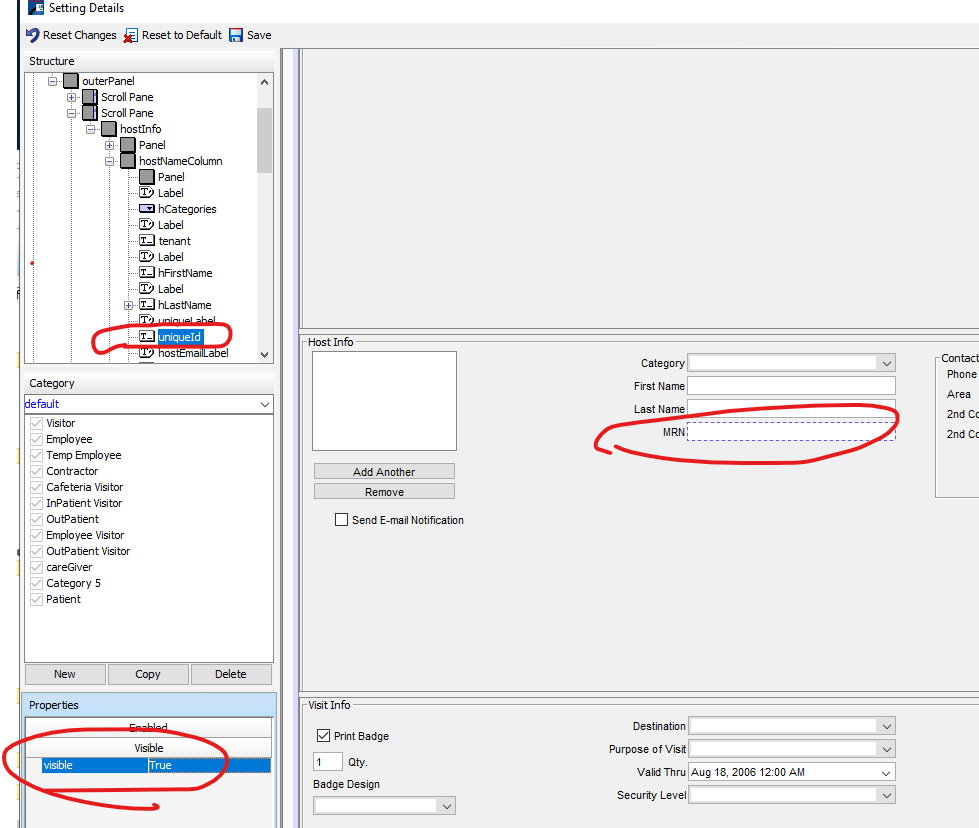

Do the same thing for the UniqueId field:




Now save by clicking on the save button at the top left.


2) Map the HL7 MRN field to passagepoint's uniqueId fiel

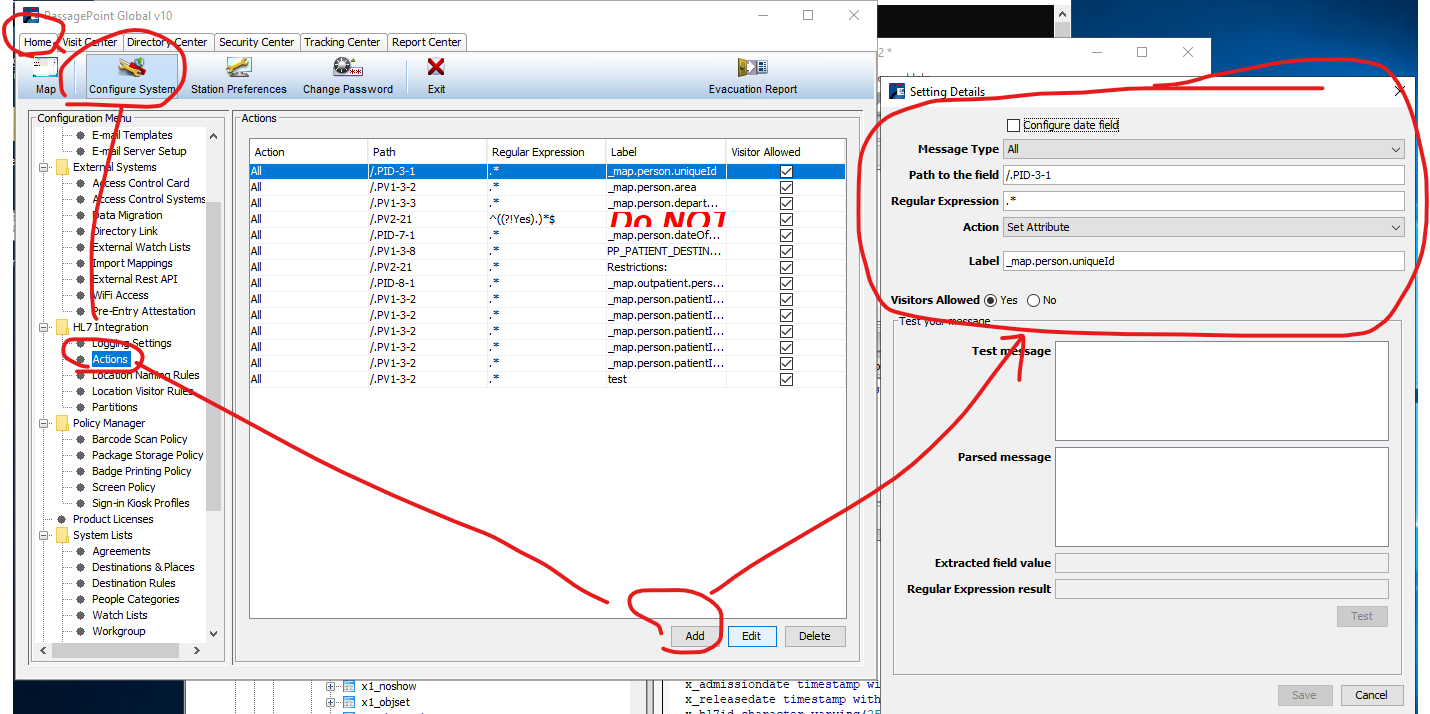

Add a new rule in Home > configure > Acitions under HL7 integrations exactly as below:

path to the field:    /.PID-3-1
Regular Expressions:   .*
Action:    Set attribute
Label:  _map.person.uniqueId
